ET200S Interface Module
6ES7151-1AA06-0AB0
SIMATIC DP, Interface module IM 151-1 Standard for ET 200S, incl. termination module Data volume of 244 bytes each for inputs and outputs, max. 63 I/O modules PROFIBUS DP V0 and V1 up to 2 m width can be connected, Bus connection via 9-pin D-sub

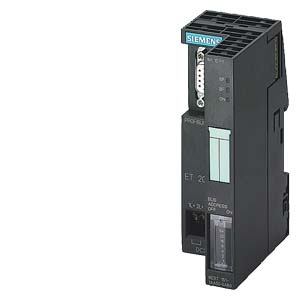

6ES7151-1BA02-0AB0
SIMATIC DP, Interface module IM151-1 High Feature f. ET200S, Transmission rate to 12 Mbit-s, data volume 244 bytes each for I/O max. 63 modules can be connected, isochronous mode Bus connection via 9-pin D-sub incl. termination module
6ES7151-1CA00-0AB0
SIMATIC DP, Interface module IM 151-1 Basic for ET 200S, Transmission rate to 12 Mbit-s, max. 12 power, electronic or motor starter modules, no F modules can be connected, Bus connection via 9-pin D-sub incl. termination module
6ES7151-1CA00-1BL0
ET 200S Compact, 32DI STD, 24 V DC, 3ms, expandable by up to to 12 modules of the ET 200S no F modules, electronic module
6ES7151-1CA00-3BL0
ET 200S Compact, 16 DI-16 DO STD 24 V DC, 3ms, 24 V DC, 0.5 A expandable by up to to 12 modules of the ET 200S (no F modules) electronic module
6ES7151-3AA23-0AB0
SIMATIC DP, Interface module IM 151-3 PN ST for ET 200S Transmission rate 100 Mbit-s max. 63 power, electronic or motor starter modules up to 2 m width can be connected, 2x bus connections via RJ45 incl. termination module
6ES7151-3BA23-0AB0
SIMATIC DP, Interface module IM 151-3 PN HF for ET 200S Transmission rate 100 Mbit-s max. 63 IO modules up to 2 m width can be connected, 2x bus connections via RJ45 incl. termination module
6ES7151-3BB23-0AB0
SIMATIC DP, Interface module IM 151-3 PN FO for ET 200S 2 PROFINET FOC interfaces integrated 2-port switch max. 63 IO modules PROFIsafe modules can be used max. 2 m station width incl. termination module
